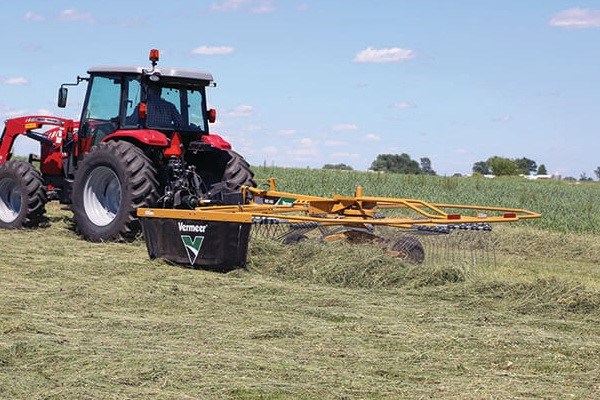

RR140 Rotary Rake
Overview:
- Designed for operators focused on both speed and high-quality performance in a variety of crops
- Versatile, side-delivery rotary rake
- Achieve a light, fluffy windrow with minimal crop roping
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Value Your Trade
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Request Brochure
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Help protect your hay quality
Gentle on the crop and allows for air flow through the windrows for quicker dry down.
Compact transport
Transport down narrow roads and through gate openings with a transport width of 6.7 ft (2 m).
Efficient operation
Hydraulic lift and rake adjustments helps operators get up and over windrows and minimize ash content getting raked into the windrow.
Specifications
| DIMENSIONS AND WEIGHTS | |
| Raking width minimum | 12.7 ft |
| Raking width maximum | 15.1 ft |
| Windrow width minimum | 28 in |
| Windrow width maximum | 55 in |
| Transport Width | 6.6 ft |
| Transport Length | 16.4 ft |
| Transport Height | 8.5 ft |
| Total Weight | 1676 lbs |
| Tongue Weight | 221 lbs |
| Transport tire size | 18x8.5-8 |
| Drive | PTO, 540 rpm |
| RAKING COMPONENTS | |
| Rotor Diameter | 135 in |
| Number of tine arms | 11 |
| Number of double tines per arm | 4 |
| TRACTOR REQUIREMENTS | |
| PTO horsepower minimum | 30 hp |
| Hydraulic Type | 1 double-acting |
| Hydraulic Pressure | 1800 psi |
| Hydraulic flow rate | 8 gpm |
